Kerapanel® KeraShape elements
Ceramic elements give a unique and light appearance to the façade.
When designing façade cladding, use ceramic elements to make the building visually more appealing. Apply the elements over the entire façade or highlight details with the shapes and colours of your choice. You can use the standard shapes and sizes of Kerapanel elements or customise the products project-specifically.
The ceramic elements function as practical sight and sun screens. The ceramic elements require no care or maintenance and retain their stunning appearance throughout service life. Contact us for more details and ask for a quote for your project.
Why should you use Kerapanel® elements?
The solution will pay off in the long term, as it requires no maintenance. Heating and air conditioning costs are also reduced.
Customisable solutions. Ceramic elements can be used to create unique surfaces completely tailored to the project. A wide range of various shapes, sizes, and colours. Available glazed and unglazed.
Protective element. Acts as a sight screen and protects against the scorching sun while letting light through. The ceramic elements can be installed vertically or horizontally.
The material retains its colour and shape. Firing at over 1,200°C ensures that time, variations in weather conditions, and UV radiation will not wear out the ceramic tile surface. The colour and shape are not affected.
Kerapanel KeraShape elements in standard sizes 50x60mm and 60x60mm are available in lengths up to 1,800mm. Rectangular 50x100mm elements are available in lengths up to 1,500mm.

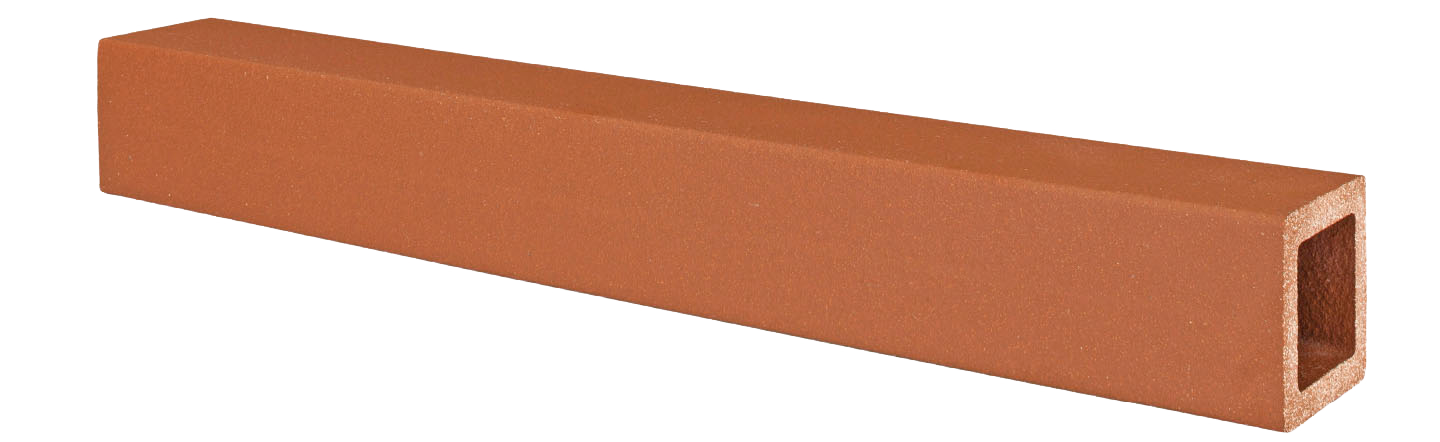

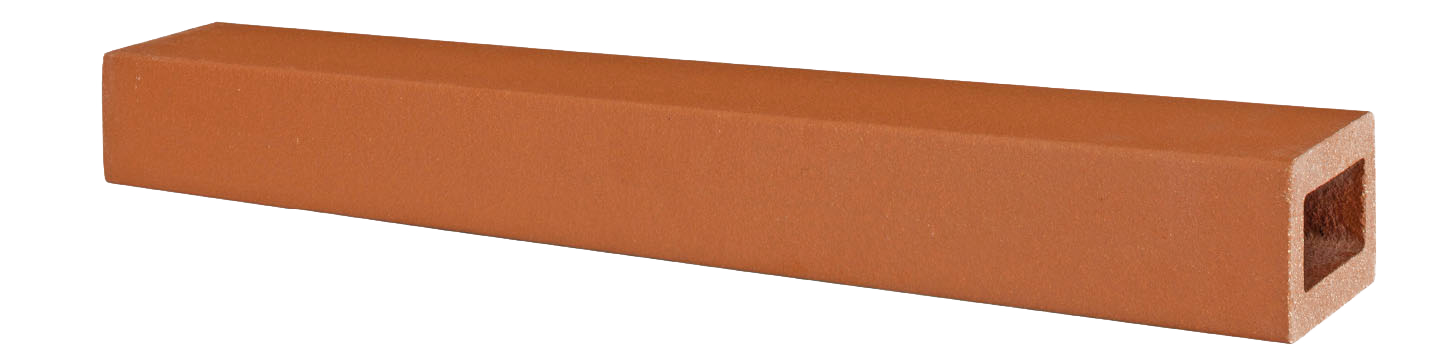

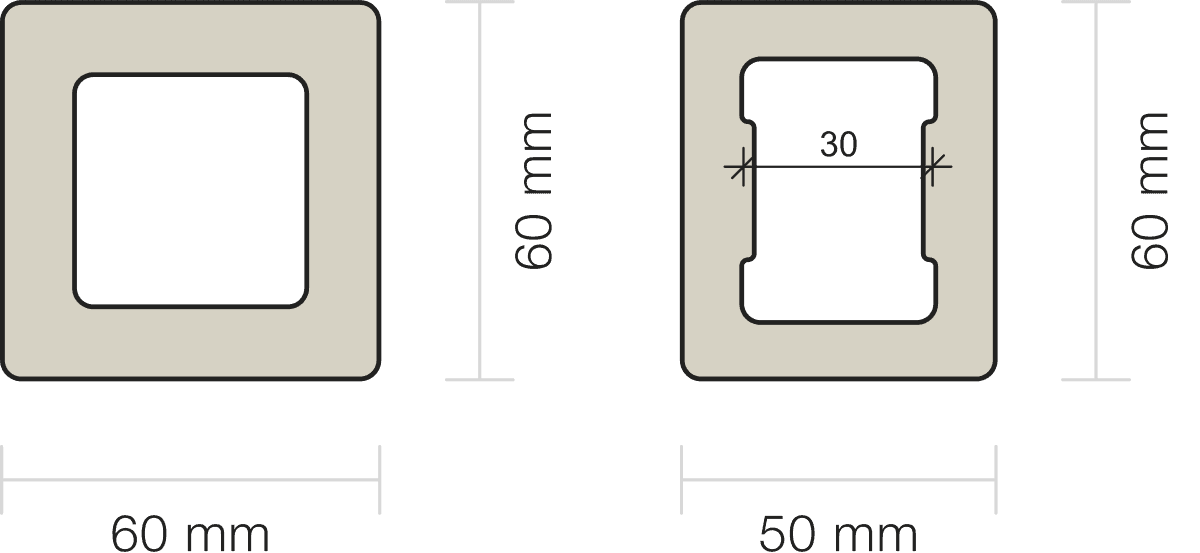

Rectangular ceramic element 50x60mm / 60x60mm
|
Rectangular tube 50x60 mm: weight 4,29 kg / lin.m.
|
 |
|
Rectangular tube 60x60 mm: weight 4,49 kg/ lin.m. |
 |
| Available unglazed and glazed. Lengths up to 1,800mm are available on request. |  |

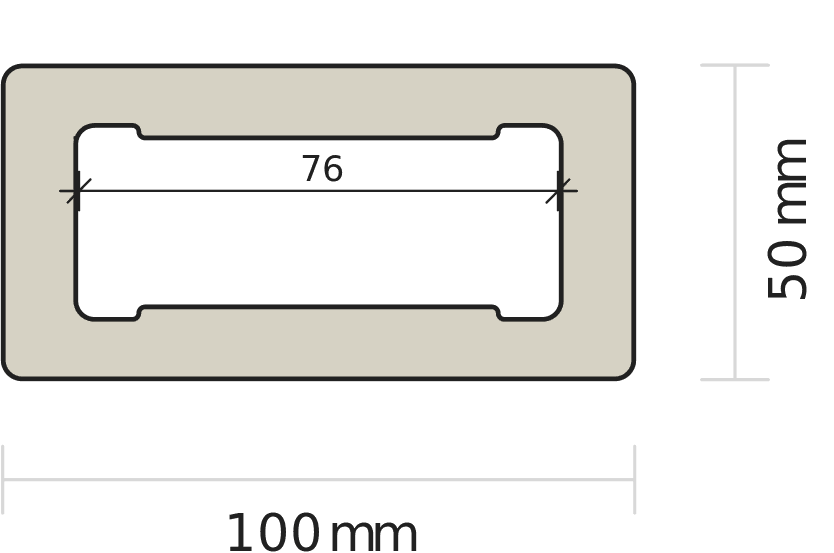

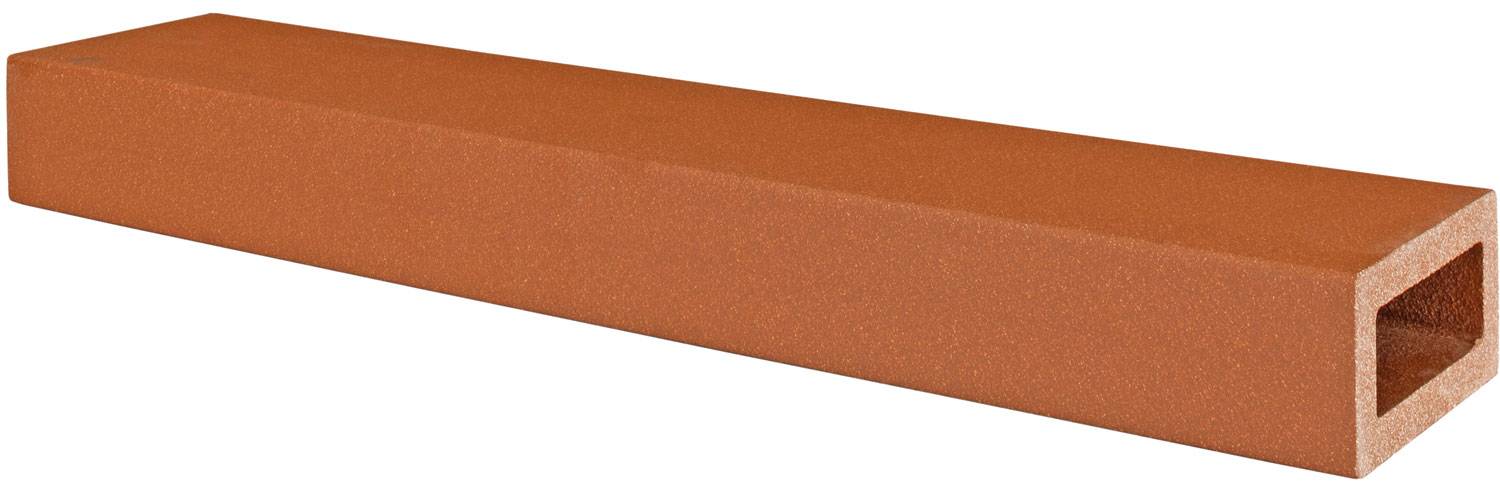

Rectangular ceramic element 50x100mm
| Rectangular tube 50x50mm: weight 6,84 kg /lin.m. |  |
| Lengths up to 1,500mm are available on request. |  |

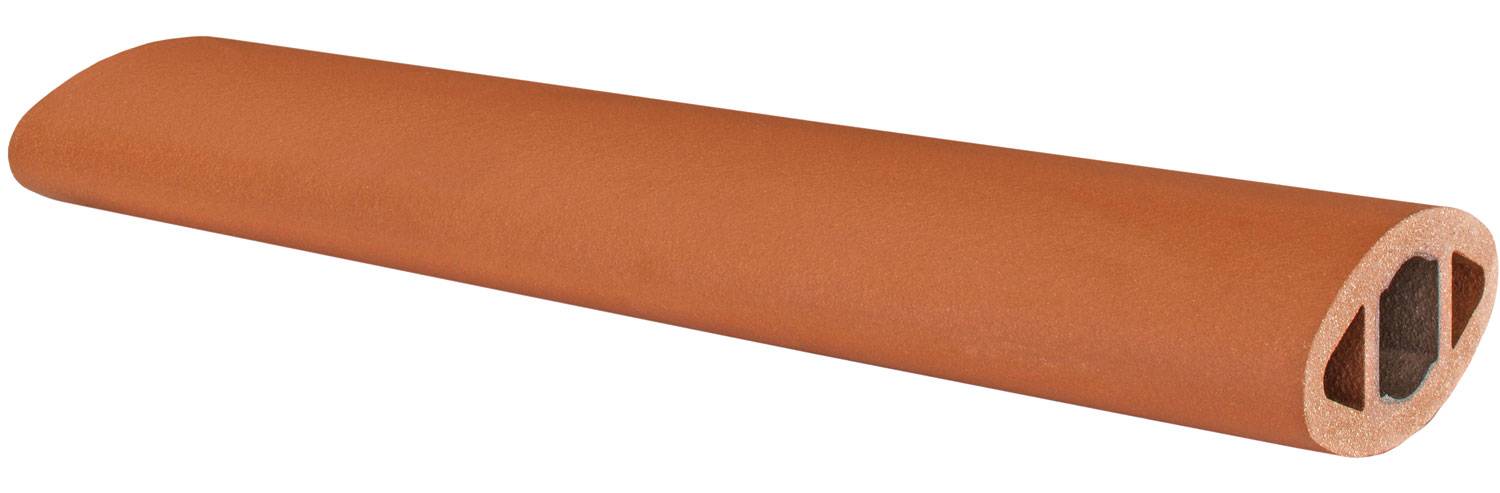

Rounded ceramic lamel 140x60 mm
| 140x60mm: weight 9kg /lin.m. |  |
| Available unglazed and glazed. Lengths up to 1,500mm are available on request. |
 |

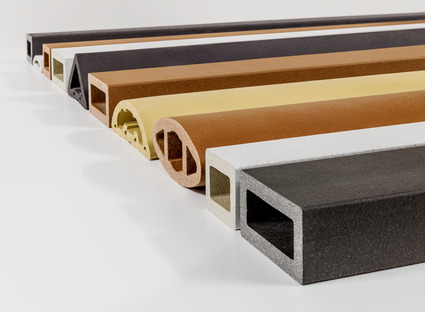

Tailored solutions
|
In addition to these standard shaped products, the ceramic elements can be tailored project-specifically.
|
 |
Kerashape elements can be installed horizontally and vertically. Click and watch a video of installation.
Vaakasuoraan asennus
|

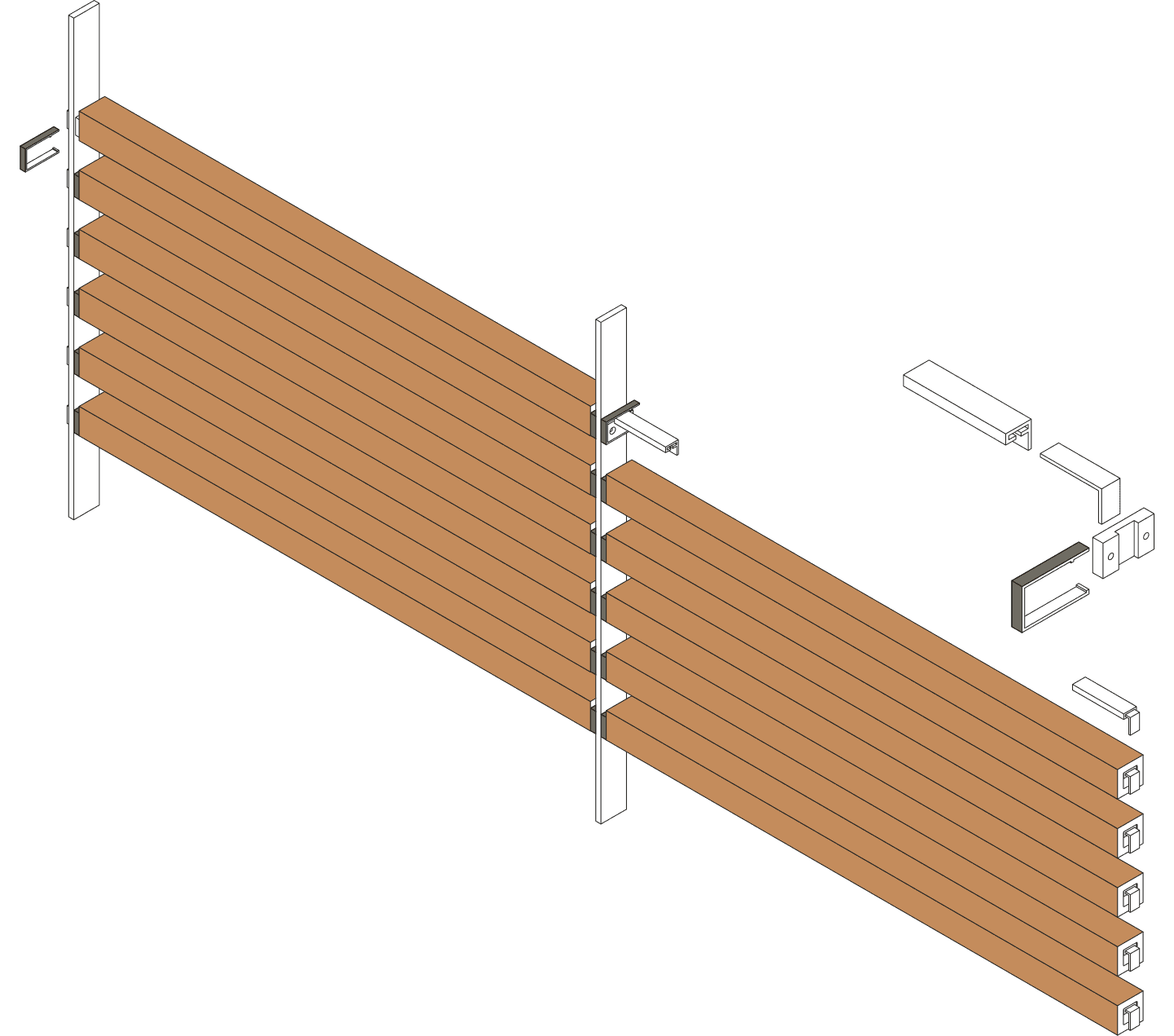

Kun haluat asentaa keraamiset sauvat vaakasuoraan, tähän asennustapaan on olemassa vakiotuotteena valmiita kiinnityssarjoja. Alla kuvattuna 50x60 ja 60x60mm keraamisille sauvoille vaakasuoraan asennukseen soveltuvat kiinnikkeet ja kiinnitystapa.
|
 |
|

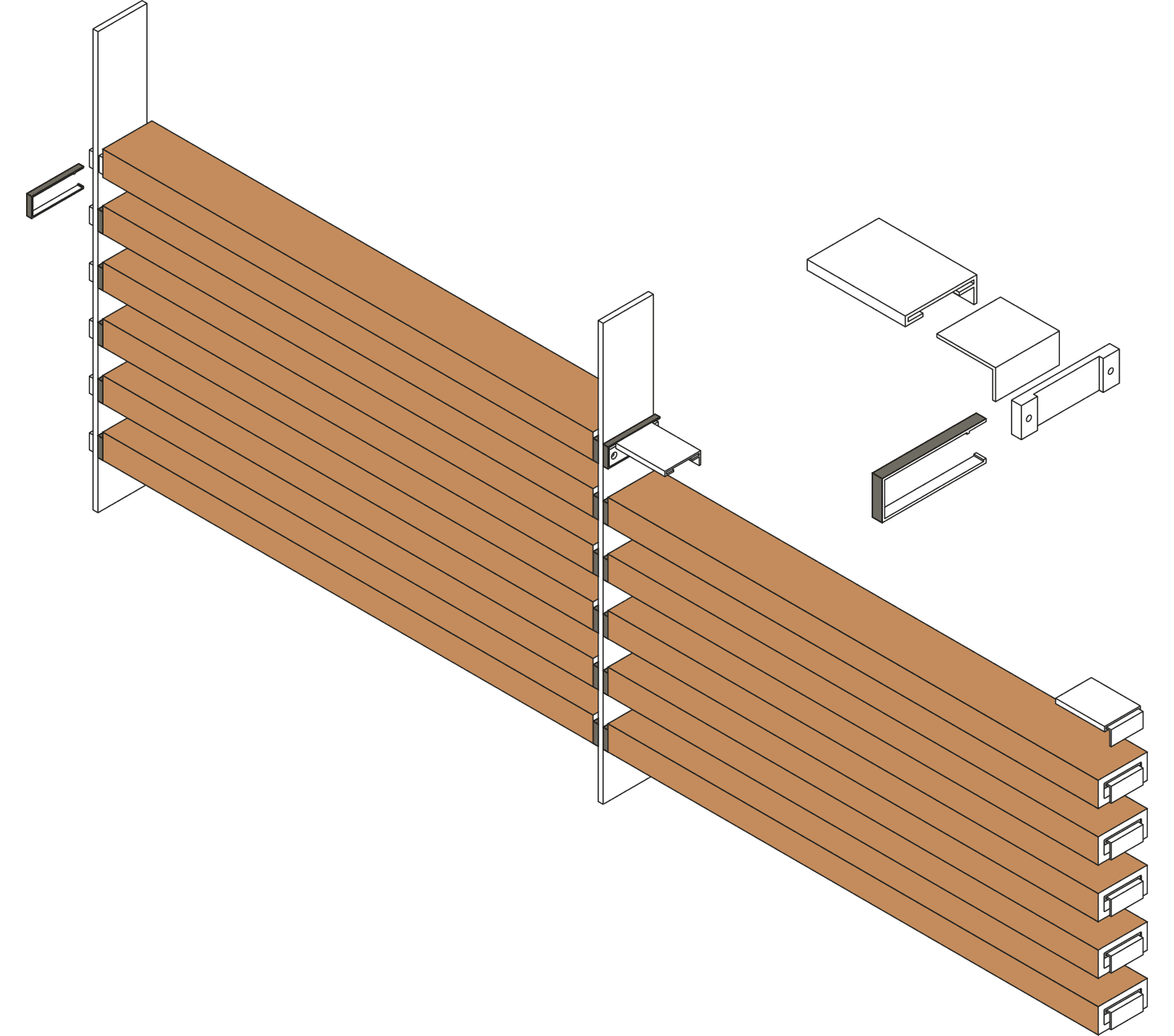

Oikealla kuvattuna 50x100mm suorakaiteen muotoisille keraamisille sauvoille vaakasuoraan asennukseen soveltuvat vakiokiinnikkeet ja kiinnitystapa. |
 |

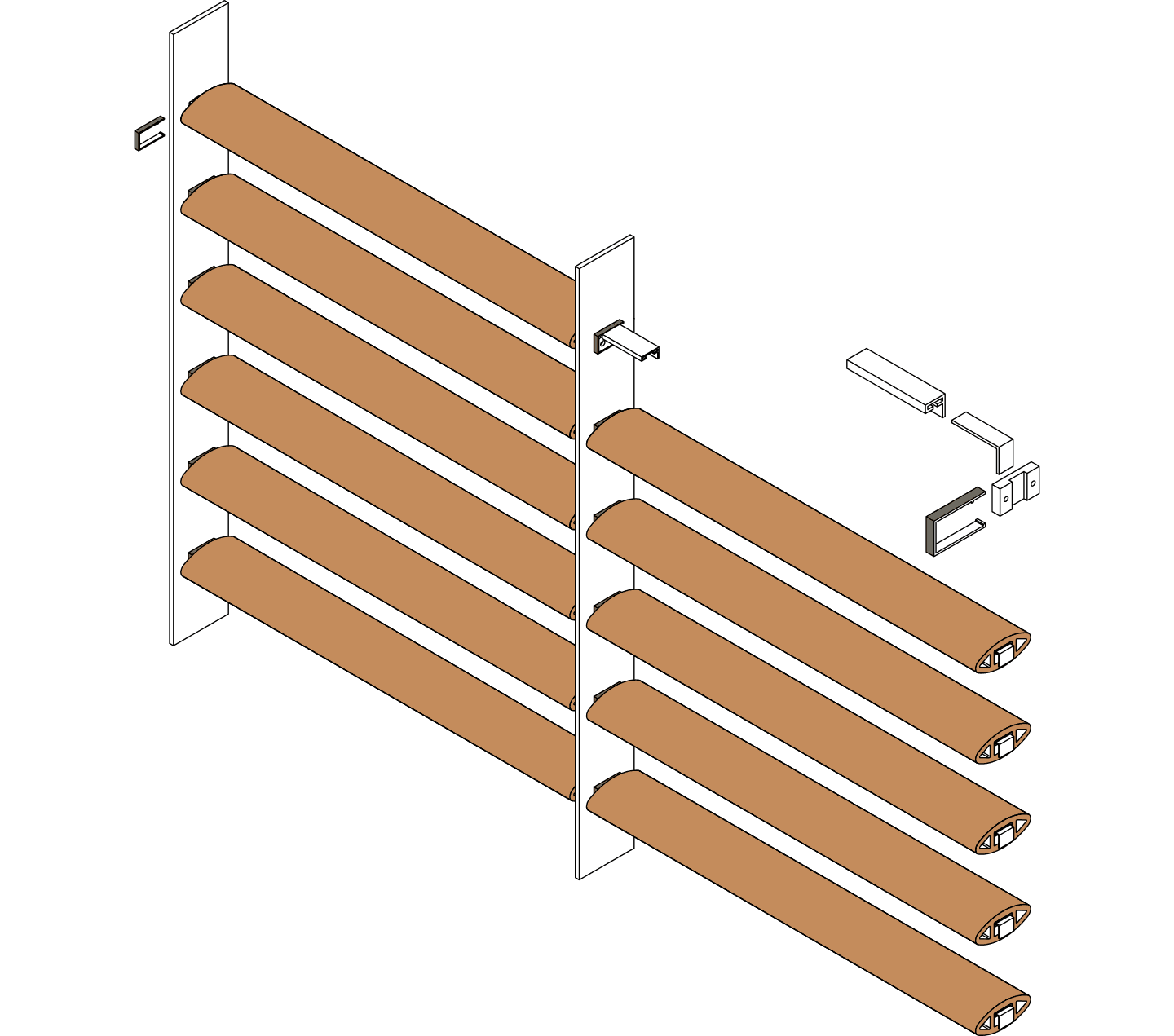

| Pyöristetty lamelli 140x60 mm vaakasuoraan asennukseen soveltuvat vakiokiinnikkeet ja kiinnitystapa. |  |
Pystyyn asennus
Suorakulmaiset KeraShape sauvat – eri pituuksissa, väreissä ja lasittamattomana tai lasitettuna – voidaan asentaa myös pystysuoraan. Kaikille keraamisten suorakulmaisten sauvojen vakiomalleille on saatavana kiinnitysmenetelmät.
Yksilölliset, projektikohtaiset ohjeet saat ABL-Laatoilta – ota yhteyttä, jos haluat projektiisi räätälöidyt tuotteet.
